Code: [NCB-3000]

22.814,00€

Delivery in 7 weeks

Quantity:

Basket

METAL DETECTOR AND CHECK WEIGHER (COMBI)

INFORMATION

NCB3000 Series (COMBO) is combination of a NMD530 Seires metal detector head and a NWC490 Series check weigher in one frame for cost effective and space saving purpose, providing superior and reliable product inspection in a compact design. NCB3000 Series combination metal detector and check weigher is the most technically superior combination unit on the market. The compact and fully accredited system saves valuable line space eliminating the expense of a separate conveyor for the metal detector. The checkweigher measures product weight quickly and precisely - rejecting "out of tolerance" products, while the metal detector consitently detects and rejects contaminated products. The easy to use full touch screen interface controls both machines, makes product change fast and simple. A clear benefit of a combined system is the low cost of ownership and the cost saving compared to a separate checkweigher and metal detector.

 METAL DETECTOR:

High Performance for Metal Detection

Closed Coil System for perfect detection.

High quality filter for more precise detection.

Auto absorption function for vibration, impact, noise and etc.

Dust Proof & Water Proof Standard (IP66) authentication.

Multi Frequency Operation

Supporting multi frequency operation mode that can measure various types of products with the correct operating frequency for maximum contaminant sensitivity in seconds.

Phase Tracking Function

Optimum detecting level is maintained by automatically coping with products of which phase is changed minutely, so detection is rather difficult such as frozen food Full Color Touch Screen (7 inch TFT LCD)

An intuitive and convenient full color touch screen, containing regional languages and user manual.

Digital Signal Processing Function

The adoption of 32-bit microprocessor has added more precise operation and performance of the equipment. Software filter technology to remove ambient noise affecting performance of a metal detector has been applied.

Exterior Design considering the convenience and aesthetics

Modern and sensuous design in which both convenience and beauty are emphasized at the same time.

Connectivity to External Devices

Backing up inspection history and etc., by using a USB removable disk and reviewing the data on a PC.

Monitoring real-time operating status for multiple metal detectors through the connective access to LAN.

Interlocking the machine to various typed external devices through RS232C & 485 port.

Auto-Setting Function of the Inspection Items

Auto-setting the machine for a testing product with the most suitable values even for beginners.

Setting Function of a Variety of Items for Convenient Operation

Up to 100 kinds of products are registered with each different setting value for convenient operation.

Manageable Metal Detecting History

Detection history by various classifications and periods (in a daily / weekly / monthly / period-specified way)

Data on detection history accessibility by LCD screen, USB disk and Printer (Optional).

Easy Software Upgrade

Easy software upgradability by USB and touch screen whenever the latest version is available.

 CHECK WEIGHER:

Full Color TFT LCD Touch Screen(10 inch TFT LCD)

An intuitive and convenient full color touch screen, containing regional languages and user manual.

Digital Signal Processing Senosr(32 Byte Microprocessor)

Greater accuracy at high speeds can be obtained using 32 byte microprocessor which allows filter characteristics to be set automatically.

Dynamic Calibration

Dynamic calibration displays correct weight if there is discrepancy between the ready status and operational weight displays.

Auto/Manual Zero Adjust

Zero adjustment can be performed by the operator before start-up or product changeover. Also, Automatic Zero adjustment is programmed to occur at regular intervals during production.

Built-in Temperature Change and Noise Compensation Circuit.

3 Kinds of User Level Passwords

3 Kinds of User Levels (Operator, Quality Manager & Engineer Menu) can be set depending on possible operational functions.

3 Kinds of Operating Screens

3 Kinds of Operating Screens (Basic, Graph & Simple Screens) are provided depending on user taste.

No More Paper Manual Book

On-the go user manual on the screen guides the operator through necessary set-up and operational procedure on each stage.

Selectable Conveyor Belt Type

Either plastic chain belt or urethae belt can be selected for applicatioN.

Easy Production Record Statistic Function Internal Memory and USB Disk Backup / Recovery Display & IOB Board Firmware Update.

Youtube Video: youtu.be/yEqJKXBowks

*The final prices are determined by the dimensions of the machines after analyzing the needs of each case.

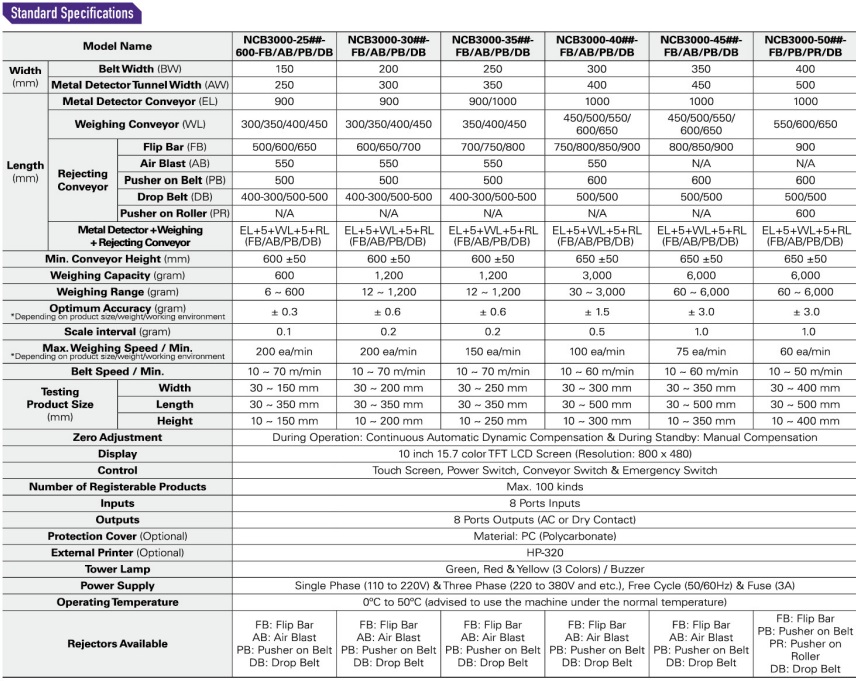

Outputs

8 Ports Outputs (AC or Dry Contact)

Power Supply

Single Phase (110 to 220V) & Three Phase (220 to 380V and etc.)

Free Cycle (50/60Hz)

Fuse (3A)

Operating Temperature

0℃ to 50℃ (advised to use the machine under normal temperature)
